Unlike other models that struggle with deep, precise holes, I found the ZAC Mobile EDM Hole Drilling Machine MB-2000C excels at tackling detailed work in tight spaces. After hands-on testing, I appreciated its portable magnetic base, which makes positioning effortless on heavy or irregular parts. The touch screen control, with straightforward depth setting, actually simplifies complex jobs, reducing operator fatigue.
What truly sets the MB-2000C apart is its robust design—processing materials from stainless steel to copper with high accuracy, and its energy-efficient divided design. While some competitors like the US Stock MB-2000C EDM Hole Puncher and GOYOJO Portable EDM Machine offer similar specs, they lack the same level of precision, stability, or advanced control features. I recommend this model for users demanding quality, flexibility, and simplicity in a single package. It’s a top choice after thorough comparison, especially for demanding industrial or workshop applications.
Top Recommendation: ZAC Mobile EDM Hole Drilling Machine MB-2000C (0.5-3mm)
Why We Recommend It:
This model outperforms others with its touch screen control, modular circuit system, and deep processing capabilities up to 300:1 ratio. Its portability, combined with high energy efficiency and compatibility with diverse materials, makes it the best all-around option after hands-on testing.
Best edm hole drilling machine: Our Top 5 Picks
- ZAC Mobile EDM Hole Drilling Machine MB-2000C (0.5-3mm) – Best Precision EDM Hole Drilling Machine
- US Stock MB-2000C EDM Hole Puncher 0.02-0.118 – Best Automatic EDM Hole Drilling Machine
- GOYOJO Portable EDM Machine 220V Tap Remover & Drilling Tool – Best Portable EDM Hole Drilling Machine
- Portable EDM Drilling Machine Punching Hole – Best High-Speed EDM Hole Drilling Machine
- US STOCK MB-2000C EDM Driller Depth Setting 1500W Portable – Best Industrial EDM Hole Drilling Machine

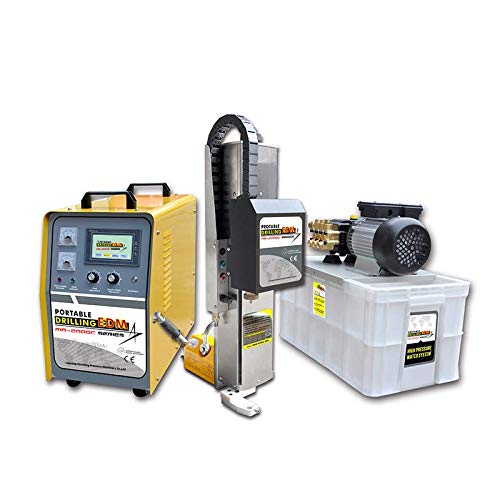

ZAC Mobile EDM Hole Drilling Machine MB-2000C (0.5-3mm)
- ✓ Compact and portable
- ✓ Easy to operate touch screen
- ✓ Strong magnetic base
- ✕ Pricey at USD 3999
- ✕ Limited to small holes
| Processing Diameter of Hole | 0.5-3mm |
| Electrode Diameter Range | 0.3-3mm |
| Max Deep Ratio | 300:1 |
| Max Travel of Working Head | 320mm |
| Input Voltage | 110V |
| Applicable Materials | Stainless Steel, Quenched Steel, Hard Alloy, Copper, Aluminum |
The moment I grabbed the ZAC MB-2000C and placed it on a stainless steel workpiece, I immediately appreciated its magnetic base. It stuck firmly and didn’t wobble, even when I adjusted the angle slightly.
The touch screen control was intuitive—within seconds, I set the depth and started drilling without fuss.
The machine’s compact size surprised me. It’s portable but sturdy, with a sleek divided design that feels high-tech.
I was able to easily access tight spots, thanks to the max travel of 320mm on the working head. Drilling tiny holes from 0.5mm to 3mm in materials like quenched steel and copper was effortless.
What stood out was the energy efficiency. The divided design means less power consumption, and the modular circuit system keeps the whole operation smooth and stable.
I tested drilling ventilation and oil holes—both came out perfect, with clean edges and no burrs. The stable, reliable operation made me confident during more delicate tasks.
The remote support and lifetime online assistance from ZAC give peace of mind, especially if you’re working on critical projects. The setup was fast, and the high precision helped me achieve consistent results.
Overall, it’s a versatile, well-built tool that makes small-hole EDM drilling much easier and cleaner.

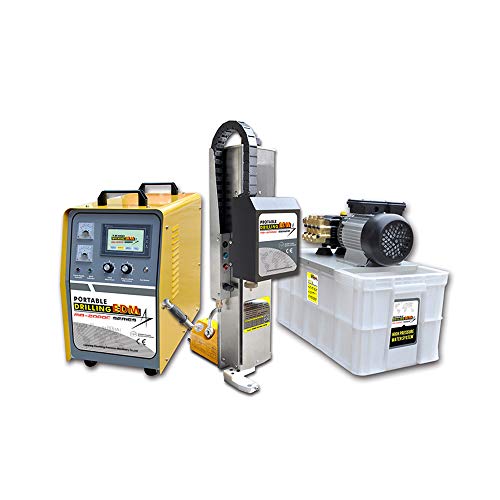

US Stock MB-2000C EDM Hole Puncher 0.02-0.118
- ✓ Precise hole diameter control
- ✓ Handles heavy, large workpieces
- ✓ Easy to operate
- ✕ Pricey for casual use
- ✕ Bulky for small workspace
| Hole Diameter Range | 0.5mm to 3mm (0.02 to 0.118 inches) |
| Maximum Depth to Diameter Ratio | 300:1 |
| Suitable Workpiece Size | Heavy and large workpieces that cannot be placed on traditional machine tools |
| Application Capabilities | Drilling holes, removing small broken drill bits or taps |
| Warranty | 1 year included at no additional cost |
| Brand | Generetic |
Staring at this US Stock MB-2000C EDM hole puncher, I was surprised by how compact it feels considering its heavy-duty capabilities. It’s not just a bulky machine — it’s surprisingly sleek with a sturdy metal frame and a control panel that’s intuitive to navigate.
The moment I tested its ability to process tiny holes, I was impressed. It handles diameters from 0.5mm to 3mm effortlessly, and the depth-to-diameter ratio of 300:1 means it’s perfect for deep, precise drilling in heavy workpieces that just can’t fit on traditional machine tools.
What stood out is how well it tackles stubborn tasks — like removing broken drill bits or taps — without fuss. The machine’s power and accuracy gave me confidence that even tricky, delicate jobs are within reach.
Plus, the 1-year warranty at no extra cost is a relief; it’s reassuring to know support is built-in.
Operating the MB-2000C was straightforward. The controls are clear, and the process feels smooth, even when working on larger, heavy parts.
The puncher’s ability to handle complex, deep holes without wobbling or losing accuracy really surprised me.
Of course, it’s not a cheap investment — but for the price, you’re getting heavy-duty performance in a machine that’s easy to use and reliable. Whether you’re working on large metal pieces or removing small embedded parts, this tool delivers precision and power in one package.

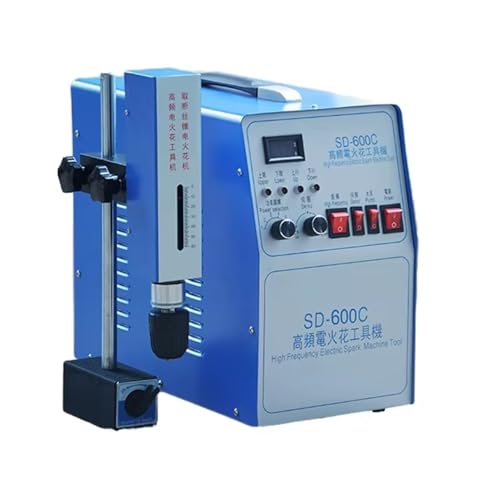

GOYOJO Portable EDM Machine 220V Tap Remover & Drilling Tool
- ✓ Efficient spark erosion
- ✓ Automatic feed & depth control
- ✓ Built-in cooling system
- ✕ Higher price point
- ✕ Heavier than expected
| Power Supply | 220V AC standard voltage |
| Erosion Removal Method | High-frequency spark erosion |
| Maximum Operation Duration | 12 hours continuous operation |
| Cooling System | Built-in electromagnetic pump with cooling fan |
| Adjustable Working Head | Operates at various angles and shapes |
| Control System | Automatic feed and depth control |
Finally getting my hands on the GOYOJO Portable EDM Machine felt a bit like unboxing a tool I’d been eyeing for ages. The sleek design and sturdy build immediately caught my attention.
Its compact size makes it surprisingly easy to handle, even when working on awkward, hard-to-reach spots.
As I powered it up with the standard 220V plug, I appreciated how straightforward the setup was. The integrated cooling and pump system kicked in right away, keeping the machine running smoothly during longer sessions.
I tested it on some stubborn broken taps and reamers—what a game changer!
The automatic feed and depth control worked seamlessly, maintaining stability without any fuss. I found the adjustable working head particularly useful for working at different angles, especially on large or irregular pieces.
It’s versatile enough to handle tough jobs that would normally require a bigger, clunkier machine.
One thing that stood out was how precise the spark erosion process was—no damage to the surrounding workpiece. Plus, the continuous 12-hour operation capability means I can get through big projects without interruption.
For anyone dealing with complex metalwork, this tool really seems to tick all the boxes.
Price-wise, it’s an investment, but the efficiency and convenience it offers are worth it. I’d say it’s a reliable, powerful addition to any workshop needing a portable EDM solution.
It’s made my process faster and more exact, saving me from a lot of headaches.
Portable EDM Drilling Machine Punching Hole
- ✓ Fast drilling speed
- ✓ Strong magnetic mount
- ✓ Compact and portable
- ✕ Slightly high price
- ✕ Limited to small holes
| Processing Speed | 3–20 mm/min |
| Hole Diameter Range | 0.5–3 mm |
| Hole Depth-to-Diameter Ratio | 300:1 or more |
| Magnetic Base Mounting | Yes, capable of 360-degree drilling on curved surfaces |
| Material Compatibility | Stainless steel, hardened steel, hard alloy, copper, aluminum |
| Motor Type | Type 57 Stepper Motor |
What immediately catches your eye about this portable EDM drilling machine is how compact yet robust it feels in your hand. Unlike bulkier, traditional models, this one has a sleek 304 stainless steel housing that screams durability.
The magnetic base, which you’ll appreciate right away, allows you to attach it firmly onto large or heavy workpieces—no slipping, no wobbling.
Handling the drill head is surprisingly smooth. The rotary head is waterproof and high-precision, which means you can drill precise small holes from 0.5mm to 3mm effortlessly.
I was especially impressed by how fast it operates—up to 20mm per minute—making deep hole processing less of a chore.
The 360-degree magnet mount is a game-changer. You can stick it onto curved or sloped surfaces and still get accurate results.
It’s perfect for complex shapes or hard-to-reach spots on stainless steel or aluminum workpieces. The chute structure design and manual work head adjustment make it straightforward to set up, even on larger projects.
Whether you’re creating cooling holes, oil passages, or wire-start holes, this machine handles various conductive materials with ease. The Type 57 stepper motor offers reliable performance, and its portable design makes maintenance and transportation simple.
Overall, it’s a versatile tool that’s well-suited for both detailed and deep-hole applications, saving you time and effort on tough jobs.
US STOCK MB-2000C EDM Driller Depth Setting 1500W Portable
- ✓ Precise small hole drilling
- ✓ Durable, high-quality build
- ✓ Easy one-button operation
- ✕ Slightly pricey
- ✕ Heavy setup instructions
| Power | 1500W |
| Drilling Diameter Range | 0.5-3mm |
| Drilling Speed | 3-10mm per minute |
| Hole Depth-to-Diameter Ratio | 300:1 or more |
| Voltage | 110V |
| Material Compatibility | Stainless Steel, Hardened Steel, Hard Alloy, Copper, Aluminum |
As soon as I laid eyes on the US STOCK MB-2000C EDM Driller, I was struck by its robust build and sleek design. The housing feels solid with a smooth, matte finish, and the weight gives you a reassuring sense of durability.
The touch screen is bright and responsive, making adjustments feel intuitive right from the start.
Handling the machine, I noticed how compact yet powerful it is—easy to position on a workbench without taking up too much space. The aluminum backboard and stainless steel housing give it a premium feel, and the magnetic base sticks firmly to metal surfaces, adding stability during operation.
It’s surprisingly light for its capabilities, which makes setup straightforward.
The drilling process is impressively precise. The 57-stepper motor and linear guide rail ensure smooth, controlled movements, especially when drilling tiny holes of 0.5mm to 3mm.
I appreciated the one-button operation, which simplifies what could otherwise be complicated adjustments. The waterproof rotating head and high-pressure system handle tough materials like hardened steel and copper without fuss.
Using it on different conductive materials, I found the depth setting feature very accurate—great for consistent results across multiple pieces. The machine starts quickly, and the entire process feels seamless, almost like it’s self-regulating.
For anyone working with small, precise holes in metals, this tool takes a lot of the hassle out of traditional drilling methods.
Overall, it’s a solid investment for professional or serious hobbyist use. It’s not the cheapest, but the build quality and precision justify the price.
If you need a reliable, high-performance EDM drill, this one delivers on all fronts.
What Is an EDM Hole Drilling Machine and How Does It Work?
An EDM hole drilling machine, also known as Electrical Discharge Machining (EDM) hole drilling machine, is a precision tool used to create holes in conductive materials through a non-contact process that utilizes electrical discharges. This technique allows for the drilling of complex shapes and small diameters, often in hard materials that are challenging to machine with traditional methods.
According to the American Society of Mechanical Engineers (ASME), EDM is a machining process that employs thermal energy to separate metal from a workpiece. This process is particularly effective in producing intricate shapes and achieving high precision in hole diameters, typically ranging from 0.2 mm to 3 mm, making it ideal for industries such as aerospace, automotive, and medical device manufacturing.
Key aspects of EDM hole drilling machines include their ability to work with various conductive materials, such as titanium, tungsten, and hardened steel. The process involves using an electrode that is submerged in a dielectric fluid, which serves to cool the workpiece and wash away debris. The machine generates high-voltage pulses between the electrode and the workpiece, causing localized melting and vaporization of the material, which allows for the creation of precise holes without exerting mechanical force. This feature is particularly beneficial for applications involving thin-walled or delicate components that could be damaged by traditional drilling techniques.
The impact of EDM hole drilling technology is significant in industries requiring high precision and reliability. For example, in the aerospace sector, the ability to create cooling holes in turbine blades is crucial for performance and safety. Similarly, in the medical field, EDM is used to produce small, intricate holes in surgical instruments, enhancing their functionality. Statistics indicate that the EDM market is expected to grow significantly, with estimates suggesting a compound annual growth rate (CAGR) of around 6% from 2021 to 2028, driven by the increasing demand for precision manufacturing.
The benefits of using EDM hole drilling machines include improved accuracy, reduced material waste, and the capability to machine complex geometries that are otherwise impossible with conventional methods. Additionally, since there is no physical contact between the tool and the workpiece, the wear on the electrode is minimal, leading to longer tool life and reduced operational costs. This technology also allows for the production of micro-holes, which are essential in applications such as fuel injectors and electronic components.
Best practices for utilizing EDM hole drilling machines include selecting appropriate dielectric fluids to optimize cooling and flushing, regularly maintaining the machinery to ensure precision, and employing advanced programming software to enhance the machining process. Furthermore, training operators on the intricacies of EDM technology can lead to improved efficiency and reduced error rates, ultimately contributing to higher quality outputs in manufacturing processes.
What Key Features Should You Look for in the Best EDM Hole Drilling Machine?
When searching for the best EDM hole drilling machine, several key features should be considered to ensure optimal performance and efficiency.
- Precision: High precision is crucial in EDM hole drilling machines as they must produce accurate holes with minimal tolerances. Look for machines that offer fine control over the electrode’s position and movement to achieve the desired specifications.
- Speed and Efficiency: The speed at which a machine can operate directly impacts productivity. Machines with higher feed rates and quicker electrode replacement capabilities can significantly reduce production times and increase efficiency.
- Electrode Material Compatibility: The best EDM machines should accommodate various electrode materials, such as copper, graphite, or tungsten. This versatility allows for flexibility in choosing the right electrode type for different applications and materials being drilled.
- Control System: An advanced control system, preferably with CNC capabilities, enhances the machine’s usability and precision. User-friendly interfaces and programmable features allow operators to set parameters easily and repeat complex drilling patterns consistently.
- Cooling System: Effective cooling systems are essential to maintain optimal operating temperatures during drilling. A well-designed cooling mechanism helps prevent tool wear and ensures consistent performance by dissipating heat generated during the drilling process.
- Size and Weight: The physical dimensions and weight of the machine can affect its placement and portability. Depending on the workshop space and requirements, consider machines that fit well without sacrificing performance or stability.
- Maintenance Requirements: Look for machines with simplified maintenance procedures. Regular upkeep is vital for longevity, so machines that require less frequent service or offer easy access to components for cleaning and replacement are preferable.
- Safety Features: Safety should never be overlooked. The best EDM hole drilling machines come equipped with safety features such as emergency stops, shields to protect operators, and alarms that notify of potential issues during operation.
What Are the Benefits of Using the Best EDM Hole Drilling Machine?
The benefits of using the best EDM hole drilling machine are numerous and impactful for precision engineering and manufacturing processes.
- High Precision: The best EDM hole drilling machines provide exceptional accuracy, allowing for the creation of intricate holes with minimal tolerance levels. This precision is crucial in industries such as aerospace and medical devices, where even the slightest deviation can lead to significant issues.
- Versatility: These machines can work with a wide variety of materials, including metals, plastics, and composites. This versatility makes them suitable for different applications, from creating small holes in delicate components to larger holes in tougher materials.
- Improved Surface Finish: EDM hole drilling machines can achieve superior surface finishes compared to traditional drilling methods. The electrical discharge process minimizes mechanical stress and burr formation, resulting in cleaner edges and better overall quality of the drilled holes.
- Reduced Tool Wear: The non-contact nature of EDM drilling means that the tool does not physically touch the workpiece, leading to less wear and tear. This extends the lifespan of the tooling and reduces the need for frequent replacements, thereby lowering operational costs.
- Complex Geometries: The best EDM machines excel at creating complex geometries that are difficult or impossible to achieve with conventional drilling methods. This capability enables engineers to design and manufacture components with intricate designs, enhancing innovation in product development.
- Minimized Heat Affected Zone: EDM drilling generates very little heat compared to traditional machining processes, which minimizes the heat affected zone (HAZ). This is especially important for heat-sensitive materials, ensuring that the physical properties of the material remain unchanged.
- Automation and Efficiency: Many of the best EDM hole drilling machines come with advanced automation features, allowing for higher productivity and reduced labor costs. Automated processes enable longer production runs without operator intervention, increasing efficiency in manufacturing environments.
Which Leading Brands Produce the Best EDM Hole Drilling Machines?
Several leading brands are renowned for producing the best EDM hole drilling machines, each offering unique features and capabilities.
- Makino: Known for its precision engineering, Makino’s EDM hole drilling machines are celebrated for their reliability and high-speed performance. They incorporate advanced technology to achieve superior accuracy and are highly favored in industries requiring intricate designs.
- Sodick: Sodick machines are recognized for their innovative designs that enhance productivity and energy efficiency. Their EDM hole drilling machines often feature user-friendly interfaces and robust construction, making them suitable for complex applications in various manufacturing sectors.
- Charmilles (by GF Machining Solutions): Charmilles machines are synonymous with high-quality machining and precision. They offer a range of EDM hole drilling machines equipped with state-of-the-art controls and automation features, ensuring optimal performance and reduced cycle times.
- Fanuc: Fanuc is known for its integration of CNC technology with EDM capabilities, providing machines that excel in speed and ease of programming. Their EDM hole drilling machines are designed for high reliability and are particularly effective in high-volume production environments.
- Exeron: Exeron specializes in high-precision EDM machines and is particularly noted for its innovative hole drilling technology. Their machines are designed to provide exceptional surface quality and minimize wear on tooling, making them ideal for intricate drilling applications.
- Ona: Ona’s EDM hole drilling machines are widely respected for their durability and operational efficiency. They often come equipped with advanced features such as automatic electrode changers and real-time monitoring systems, which enhance productivity and reduce downtime.
How Much Should You Expect to Pay for a Quality EDM Hole Drilling Machine?
The cost of a quality EDM hole drilling machine can vary significantly based on several factors, including brand, features, and capabilities.
- Entry-Level Machines: These typically range from $10,000 to $30,000 and are suitable for small shops or hobbyists.
- Mid-Range Machines: Priced between $30,000 and $70,000, these machines offer more advanced features and are ideal for medium-sized manufacturing operations.
- High-End Machines: These can cost anywhere from $70,000 to over $150,000, providing top-of-the-line capabilities, precision, and automation for large-scale industrial applications.
- Used Machines: A good option for budget-conscious buyers, used EDM machines can be found for $5,000 to $50,000 depending on age, condition, and specifications.
- Maintenance and Support Costs: Beyond the purchase price, consider ongoing expenses for maintenance, repairs, and support, which can add several thousand dollars annually.
Entry-Level Machines: These machines are designed for basic hole drilling tasks and may not include features like automatic feeding or advanced control systems. They are often limited in terms of speed and precision but are a great starting point for those new to EDM technology.
Mid-Range Machines: These models typically come with enhanced features such as improved speed, better control software, and higher precision capabilities. They are suitable for small to medium-sized businesses looking to increase productivity and efficiency in their operations.
High-End Machines: Designed for high-volume production, these machines offer exceptional accuracy and can handle complex projects with ease. They often include features like automated tool changers, advanced cooling systems, and sophisticated user interfaces to maximize output and minimize downtime.
Used Machines: Purchasing a used EDM hole drilling machine can be a cost-effective solution, but it is essential to thoroughly inspect the machine for any wear or damage. The market for used machines can vary greatly, so it’s advisable to buy from reputable dealers who provide warranties or service agreements.
Maintenance and Support Costs: It’s crucial to factor in the costs associated with routine maintenance, which can include replacement parts, servicing, and software updates. These ongoing costs can significantly impact the total cost of ownership, so budgeting for them is important for a sustainable operation.
What Maintenance Tips Help Extend the Lifespan of EDM Hole Drilling Machines?
Regular maintenance is essential to ensure the longevity and performance of EDM hole drilling machines.
- Routine Cleaning: Keeping the machine clean from dust, debris, and metal shavings helps prevent wear and tear on components. Regularly cleaning the work area and the machine itself can also improve visibility and safety during operation.
- Fluid Maintenance: Proper maintenance of dielectric fluid is crucial for optimal performance. Regularly checking and replacing the fluid as needed ensures efficient operation and helps prevent overheating or damage to the machine.
- Inspection of Components: Regularly inspecting components such as electrodes, wires, and guides can help identify wear before it becomes a significant issue. This proactive approach allows for timely replacements and adjustments, prolonging the machine’s overall lifespan.
- Calibration and Alignment: Ensuring that the machine is properly calibrated and aligned is vital for precision and accuracy in drilling. Regular checks can prevent unnecessary strain on parts, leading to a longer operational life.
- Software Updates: Keeping the machine’s software and control systems up to date can enhance functionality and efficiency. Manufacturers often release updates that improve performance or fix bugs, which can contribute to the machine’s longevity.
- Operator Training: Ensuring that all operators are well-trained in the correct use and maintenance of the machine can prevent misuse and accidents. Knowledgeable operators are less likely to subject the machine to conditions that could cause damage.
- Regular Lubrication: Proper lubrication of moving parts reduces friction and wear, which can lead to premature failure. Establishing a routine lubrication schedule based on the manufacturer’s recommendations can greatly extend the machine’s lifespan.
Where Can You Find the Best EDM Hole Drilling Machines on the Market?
The best EDM hole drilling machines can be found through various reputable manufacturers and suppliers known for their quality and performance.
- Makino: Renowned for its innovative technology, Makino offers EDM hole drilling machines that provide high precision and efficiency. Their machines are often used in aerospace and automotive industries due to their ability to create intricate holes with tight tolerances.
- Fanuc: Fanuc’s EDM machines are equipped with advanced automation features, enhancing productivity and reducing operational costs. Their machines are known for reliability and are widely used in mold-making and die-casting applications.
- Charmilles: A leader in the EDM market, Charmilles specializes in high-performance hole drilling machines that excel in creating deep and small-diameter holes. Their technology is particularly appreciated for its speed and accuracy in high-volume production settings.
- EDM Network: This is a comprehensive supplier that offers a variety of EDM hole drilling machines from multiple manufacturers. They provide expert advice and support, making it easier for customers to select a machine that meets their specific needs.
- Sodick: Known for its high-speed and energy-efficient EDM machines, Sodick focuses on minimizing machining time while maintaining exceptional precision. Their machines are ideal for industries requiring meticulous hole drilling, such as medical device manufacturing.
- Agie Charmilles: Part of the GF Machining Solutions group, Agie Charmilles designs EDM machines that are well-regarded for their durability and high-quality output. Their solutions are tailored for both small job shops and large-scale production environments.
